[aruba cx] 1x CFG&확인

#스위치 설정

Current configuration: ! !Version ArubaOS-CX Virtual.10.13.0005 !export-password: default hostname SVR-SW user admin group administrators password ciphertext AQBapbFYEb8DLhv+Kb4YSp7au8olYUZMT/kIRBz9u+/C7lCQYgAAACuDkt1KEtd0wgyLl2+tlO8+l/LR6UfvR+9YgXK4U+b+wlVWfuJ9m7SOqkNuqJGcKUvmi7P/xv62ATrZrt5M221gMlyjCefAUxX68WJaNptAauuBksH8akBy2STTEk6CKERI ntp server pool.ntp.org minpoll 4 maxpoll 4 iburst ntp enable ! ! ! ! radius-server host 192.168.100.100 key ciphertext AQBapTFkqEmzpP1DQ72mkZIFq4QaOA8TGEI+d8u2meBQuUIXCAAAAMEkBiurt7sO ! ! aaa group server radius cppm     server 192.168.100.100 ! ! ssh server vrf mgmt vlan 1,11 interface mgmt     no shutdown     ip dhcp port-access role emplyee     vlan access 11 port-access role critical     vlan access 11 aaa authentication port-access dot1x authenticator     radius server-group cppm     enable interface 1/1/3     no shutdown     no routing     vlan access 1     aaa authentication port-access critical-role critical     aaa authentication port-access dot1x authenticator         enable interface 1/1/6     no shutdown     no routing     vlan access 1 interface vlan 1     ip address 192.168.100.1/24 ! ! ! ! ! https-server vrf mgmt

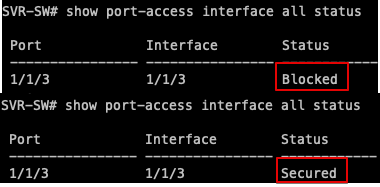

#인증 여부 확인(인증 OK : Secured // 인증 NOK : Blocked)

show port-access interface all status

** switch role 없는 경우 Blocked 발생

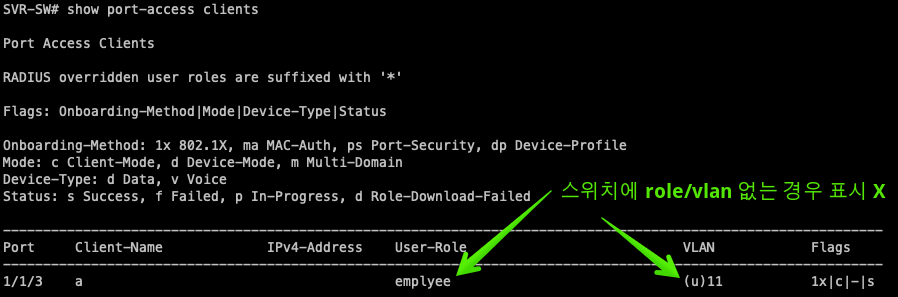

#role, vlan 할당 확인

show port-access clients

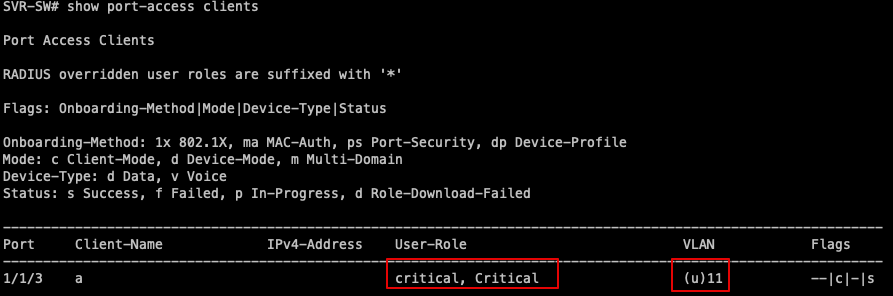

#인증서버 다운된 경우 role 할당

<설정>

port-access role critical

vlan access 11

!

interface 1/1/4

aaa authentication port-access critical-role critical



<확인>

show port-access clients
